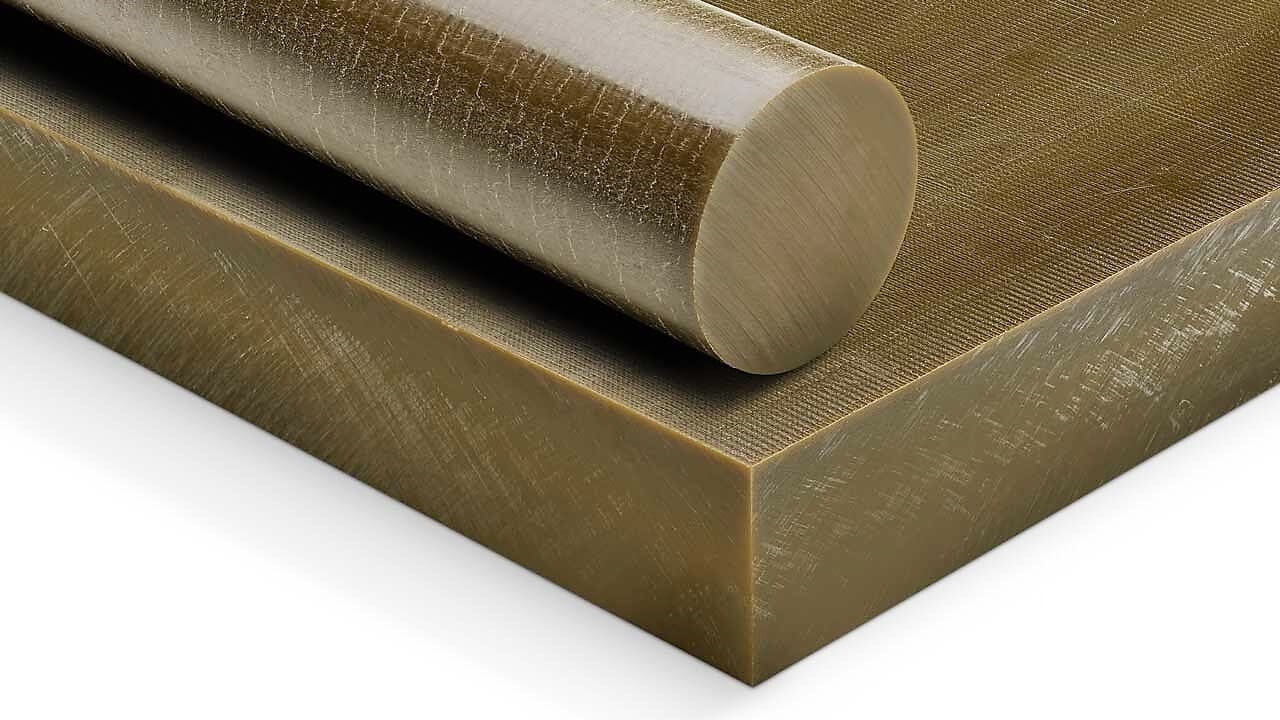

Ultem® 2300 is a glass fiber reinforced high performance engineering thermoplastic polymer that provides superior strength and stiffness. It has excellent chemical resistance and has a continuous service temperature of 340 degrees F. It is easily machined with conventional metal working equipment and can be machined to very close tolerances. Both sheet and rod are available in many thicknesses and diameters. Rod stock comes ground to diameter to accommodate through spindle turning. Standard colors are tan and black, and custom colors are available only as custom runs.
Ultem® 2300 enhanced structure increases its rigidity and improves dimensional stability while maintaining many of the useful charactoristics of unfilled Ultem. Also, since it is an amorphous material, care needs to be taken if machined with coolant. If used, non aromatic coolants should be used to avoid crazing.
| Specification | Test | Value | Units |
| Specific Gravity, 73°F | D792 | 1.51 | - |
| Tensile Strength @ Yield, 73°F | D638 | 17,000 | psi |
| Tensile Modulus of Elasticity, 73°F | D638 | 800,000 | psi |
| Tensile Elongation (at break), 73°F | D638 | 3 | % |
| Flexural Strength, 73°F | D790 | 27,000 | psi |
| Flexural Modulus of Elasticity | D790 | 850,000 | psi |
| Shear Strength, 73°F | D732 | psi | |
| Compressive Strength - Ultimate | psi | ||
| Compressive Strength at 2% Deformation | D695 | psi | |
| Compressive Strength at 10% Deformation | D695 | 32,000 | psi |
| Deformation Under Load | < 1 | % | |
| Compressive Modulus of Elasticity, 73°F | D695 | 625,000 | |
| Compressive Strength ⊥ to Laminate (Modulus) | psi | ||
| Compressive Strength ⊥ to Laminate (Yield) | psi | ||
| Compressive Strength ⊥ to Laminate (Ultimate) | psi | ||
| Hardness, Durometer (Shore "D" scale) | D2240 | D86 | |
| Hardness, Rockwell (Scale as noted) | D785 | M112 (R127) | Rockwell M |
| Izod Impact, Notched @ 73°F | D256 Type A | 1 | ft.lbs/in. of notch |
| Coefficient of Friction (Dry vs Steel) Static | PTM 55007 | ||
| Coefficient of Friction (Dry vs Steel) Dynamic | PTM 55007 | ||
| Maximum Static Bearing Load (P) | PTM 55007 | 1,000 | psi |
| Maximum Unlubricated No Load Bearing Velocity (V) | PTM 55007 | ft/minute | |
| Maximum Limiting PV (Unlubricated) | PTM 55007 | psi x ft/min. | |
| Wear Factor "K" x 10-10 | PTM 55010 | Cubic in.-min/ft.lbs.hr | |
| Sand Wheel Wear/Abrasion Test | 80 | UHMW=100 | |
| Minimum Mating Surface Hardness | 30 | Rockwell (Brinnell) | |
| Coefficient of Linear Thermal Expansion | E-831 (TMA) | 1.1 | in/in/°F x 10-5 |
| Coefficient of Thermal Expansion // to Laminates | E-831 (TMA) | 1.1 | in/in/°F x 10-5 |
| Coefficient of Thermal Expansion I to Laminates | E-831 (TMA) | 1.1 | in/in/°F x 10-5 |
| Softening Point | 400 | °F | |
| Heat Deflection Temperature 264 psi | D648 | 410 | °F |
| Embrittlement Temperature | °F Min. | ||
| Continuous Service Temperature in Air | 340 | °F Max. | |
| Short Term Service Temperature | 360 | °F Max. | |
| Tg-Glass Transition (Amorphous) | D3418 | 410 | °F |
| Melting Point (Crystalline) Peak | D3418 | °F | |
| Thermal Conductivity | F433 | 1.56 | BTU-in/(hr/ft2°F) |
| Dielectric Strength Short Term | D149 | 770 | Volts/mil |
| Surface Resistivity | D257 | >1013 | ohm/cm |
| Volume Resistivity | D257 | ohm/cm | |
| Dielectric Constant, 106 Hz | D150 | 3.7 | |
| Dissipation Factor, 106 Hz | D150 | 0.0015 | |
| Flammability @ 3.1mm(1/8 in.) UL94 | UL94 | V-0 | |
| Arc Resistance | seconds | ||
| Water Absorption, Immersion 24 Hours | D570 (2) | 0.18 | % |
| Water Absorption, Immersion Saturation | D570 (2) | .9 | % |
| Machinability Rating | 1 | 1=easy, 10=difficult | |
| Rod Diameter Availability (Off the Shelf) | .50 | 6.0 | inches |
| Sheet Thickness Availability (Off the Shelf) | .030 | 3.0 | inches |
